- Model:LZ series
- Capstan diameter:from 250mm to 1200mm
- Number of blocks:from 1 to 16
- Motor power:from 5.5kw to 132kw for each block
- Max speed:30m/s
Our straight type wire drawing machine reached top level quality and performance in the world, we have supply such type machine to many country.
Product Description

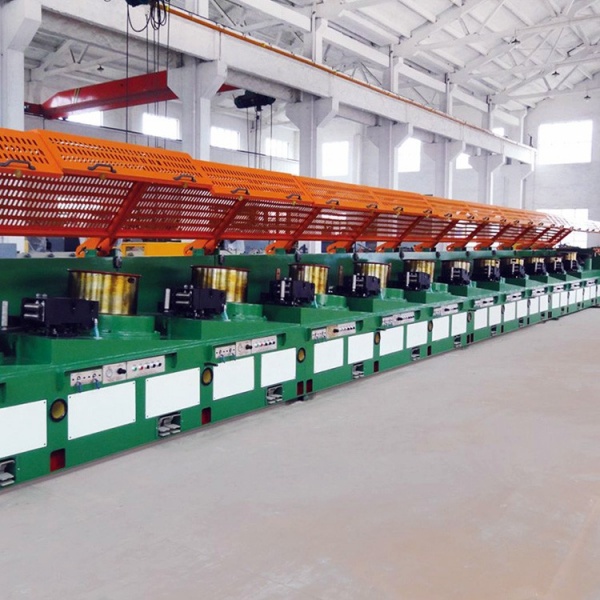

Straight wire drawing machine
DescriptionOur straight type wire drawing machine reached top level quality and performance in the world, we have supply such type machine to many country.By dancer unit to check the tension change between each block, and though multi pass drawing , Continuous straight line wire drawing machine can run at very high speed and achieve very high total reduction rate of wire section. It mainly applied for production of PC steel wire, steel wire stand, steel wire cord, tyre wire, spring wire, stainless steel wire, wire rope, gas welding wire, arc welding wire, low carbon etc.
Features:
1.High effective, higher drawing speed in normal production;
2.Easy operation, delightful man-machine interface;
3.Much better finish wire quality due to less deviations, no torsion drawing ;
4.Better processing environment due to install dust protection mechanism;
5.High performance cooling system-water cooling plus high pressure wind cooling ;
6.Flexible control system for optional-Profibus or simulation input/out put ;
7.Long life of capstan, more than 20000 hours
|
Items |
Unit |
LZ9/1200 (1000) |
LZ9/1000 (800) |
LZ10/800 (700) |
LZ10/600 (560) |
LZ10/450 (400) |
|
|
Capstan diameter |
mm |
1200-1000 |
1000-800 |
800(700) |
600(560) |
450(400) |
|
|
Draw dies |
time |
9 |
9 |
10 |
10 |
10 |
|
|
Max inlet diameter |
mm |
Φ14-10 |
Φ10-8 |
Φ9-6.5 |
Φ6.5-5.5 |
Φ4.5-2.5 |
|
|
Min outlet diameter |
mm |
Φ5-3.5 |
Φ3.5-2.8 |
Φ2.8-2.0 |
Φ2-1.7 |
Φ1.4-0.8 |
|
|
Max drawing speed |
m/min |
300 |
360 |
480 |
720 |
840 |
|
|
Inlet tensile strength |
Mpa |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
≤1300 |
|
|
Total compression rate |
% |
87.24 |
87.75 |
90.53 |
90.53 |
90.32 |
|
|
Average compression rate |
% |
20.45 |
20.8 |
21 |
21.00 |
20.83 |
|
|
Motor power |
Kw |
110-75 |
90-45 |
75-37 |
37-22 |
15-7.5 |
|
For straight wire drawing machine, we have export to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, Italy, Belarus etc.
Thanks to our partner, many times, without our engineer to visit customer site, customer will run the machine by themself, even they are first time in the drawing field
